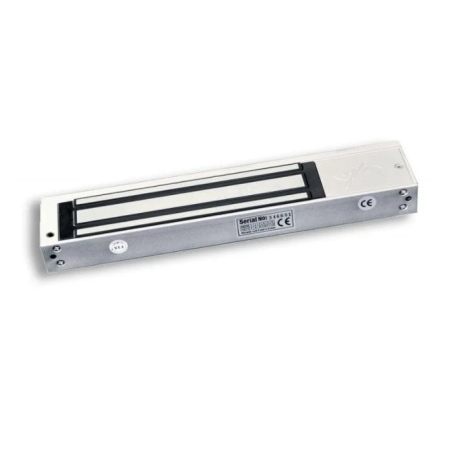

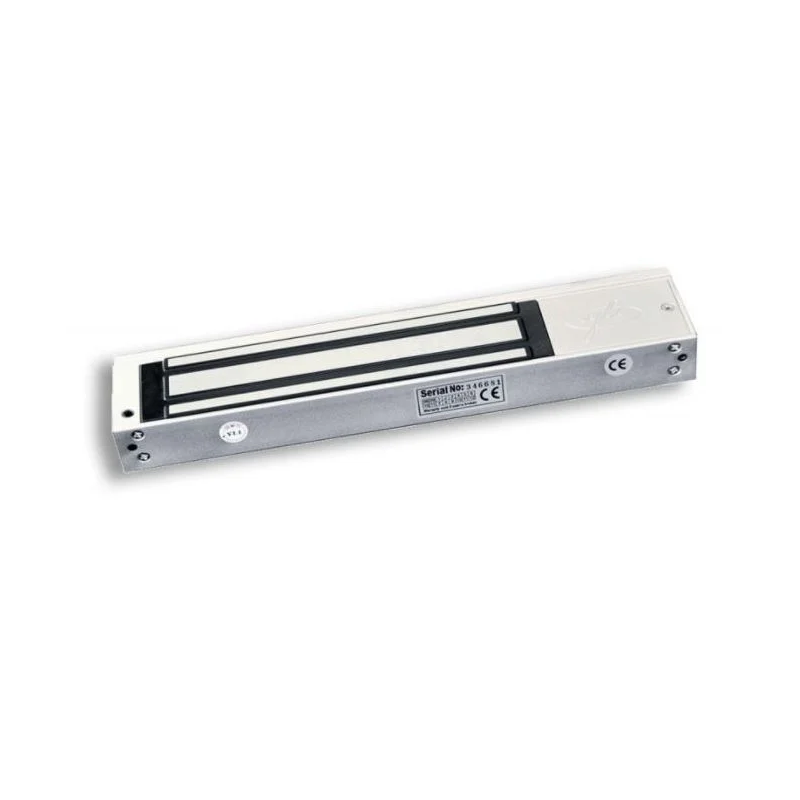

Electromagnetic door lock Electromagnet 12/24VDC force 280kg with LED indication PBM-280LSM

Technical Data:

Power Supply: 12VDC/0.48A, 24VDC/0.24A
Dimensions: Magnet: 250 x 47 x 25 mm; Plate: 180 x 38 x 12 mm
Holding Force: Maximum pulling force – 280 kg
Installation: Surface-mounted
Door Types: Wooden, glass, metal
LED Indicator: Power-on status indicator
Door Position Sensor: NO/NC contacts
Operating Temperature: -10°C to +55°C
Weight: 1.8 kg
Applications:

Offices: Electromagnetic locks are ideal for securing office premises, ensuring the safety of employees and property.
Residential Buildings: Used to protect stairway or main entrance doors.
Commercial Spaces: Provide security solutions for shops, warehouses, and other commercial premises.
Pros:

Strong Holding Force: Maximum 280 kg magnetic pull ensures high security.
Versatile Use: Suitable for various door types (wooden, glass, metal).
Convenience: LED indicator and door position sensors help monitor the status.
Compact Design: Saves space and suits modern interiors.
Reliability: Operates efficiently with 12/24VDC power supply.
Cons:

Installation Requirements: May require assistance from a professional installer.
Energy Demand: Needs a constant power source.
This electromagnetic lock is a reliable, versatile, and modern solution for door security, meeting the needs of both residential and commercial properties.
